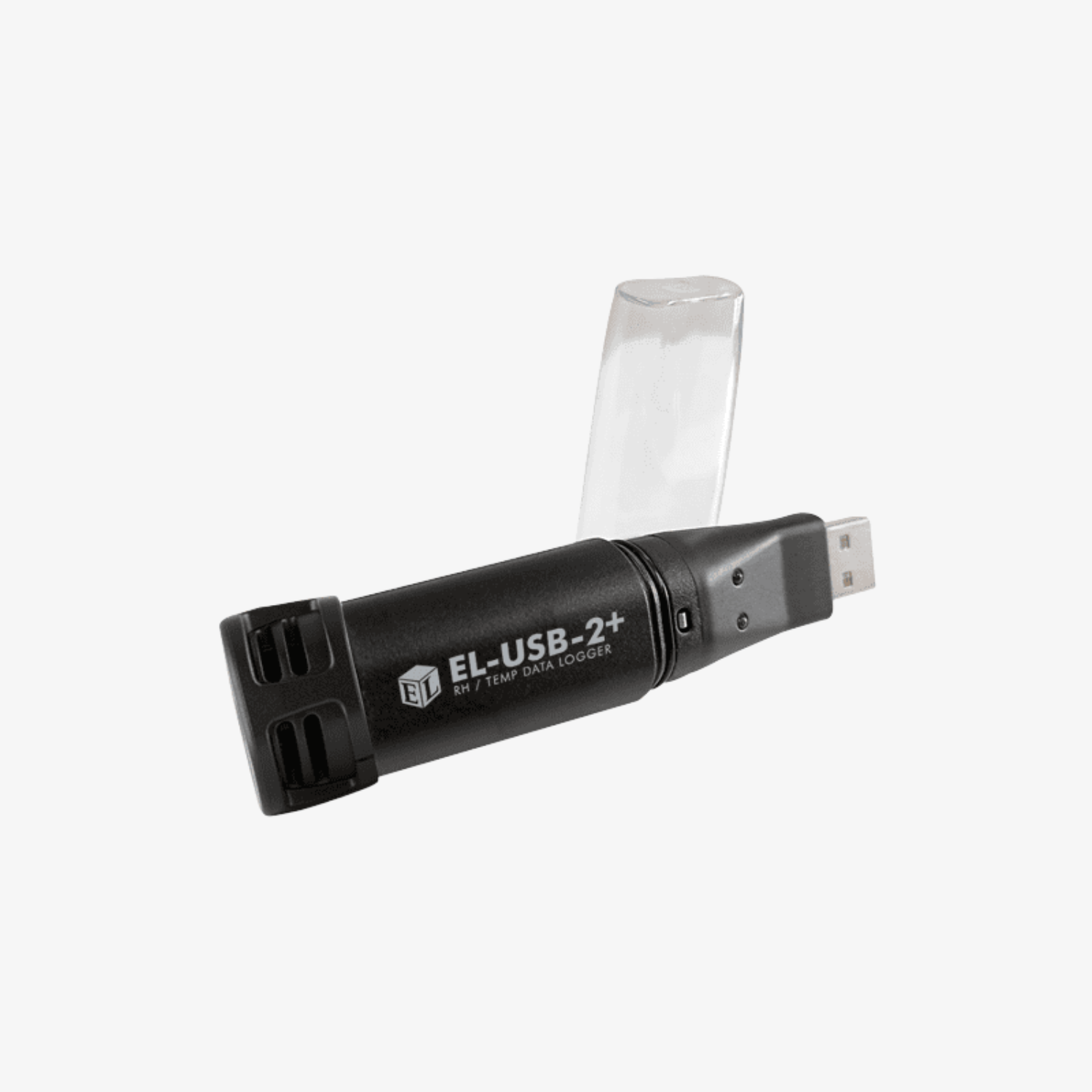

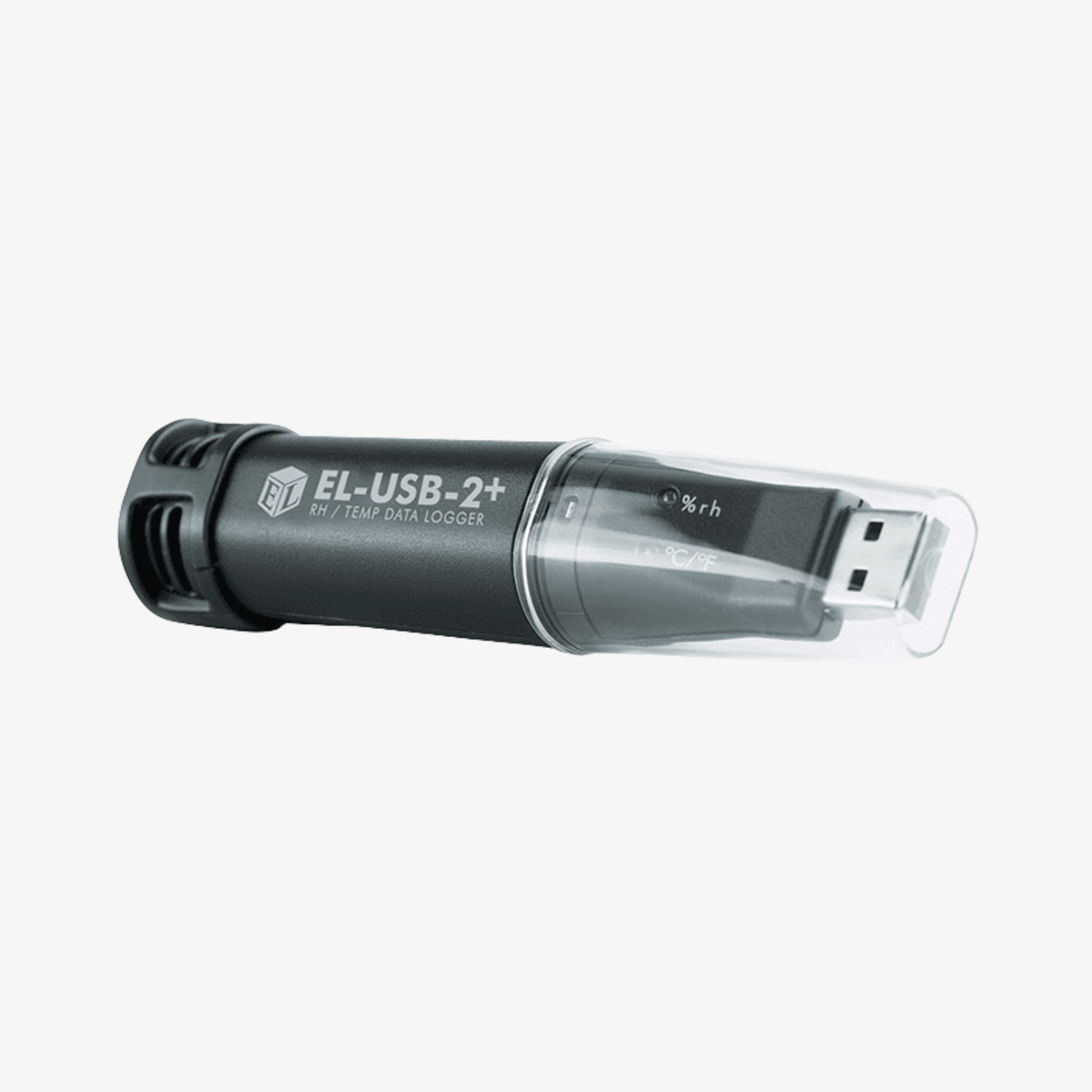

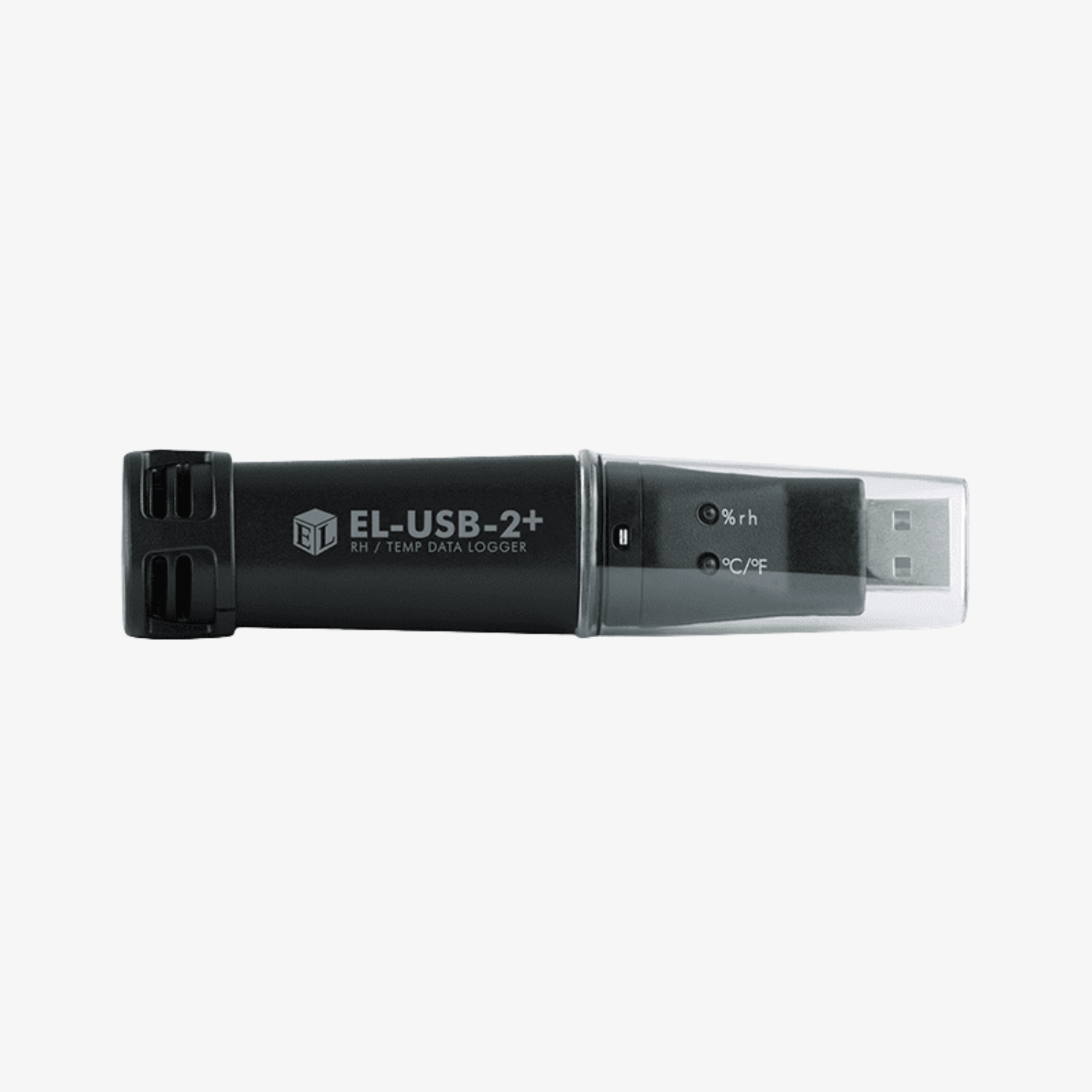

EasyLog | EL-USB-2+

EasyLog | EL-USB-2+

This standalone data logger measures over 16,000 readings over a -35 to +80°C (-31 to +176°­­F) and 0 to 100% humidity (RH) range. Easily set up the logger and view downloaded data by plugging the unit into a PC’s USB port and using the free EasyLog software provided. Data can then be graphed, printed and exported to other applications for detailed analysis. Supplied with ½ AA battery and wall mount clip.

Specifications

✔ Measurement range: -35°C to 80°C (-31°F to 176°F)
✔ Internal resolution: 0.5°C (1°F)
✔ Accuracy (overall error): 0.45°C (0.86°F) typical (5 to 60°C)
✔ Long term stability: <0.02°C (0.04°F) / year
✔ Measurement range: 0 to 100%RH
✔ Internal resolution: 0.5%RH
✔ Accuracy (overall error): 2.0%RH typical (10 to 90%RH)
✔ Long term stability: <0.25%RH / year
✔ Logging Rate: User selectable between 10 seconds and 12 hours
✔ Battery Life: 3 Years
✔ Calibration Certificate: Available Separately

Download Datasheet View full details
